Detail Information

Camera:	CMOS 1000TVL	Power:	DC15V 1A
Product Name:	Video Intercom System For Apartment	Connection:	4-wire Cable
Warranty:	2 Years	Screen:	4.3&7inch For Option
High Light:	CMOS Apartment Video Doorbell , 1000TVL Apartment Video Doorbell , CMOS Intercom Door Lock

Product Description

5 Family Multi Apartment Video Doorbell Direct Button One Outdoor Video Phone With Four Monitor Screen

The 4-wire intercom system is a video intercom system developed for apartment users. The system has call intercom, monitoring, IC card access control and other functions.

It is well designed with easy operation, such as ringtone replacement, volume adjustment and other intuitive operations.

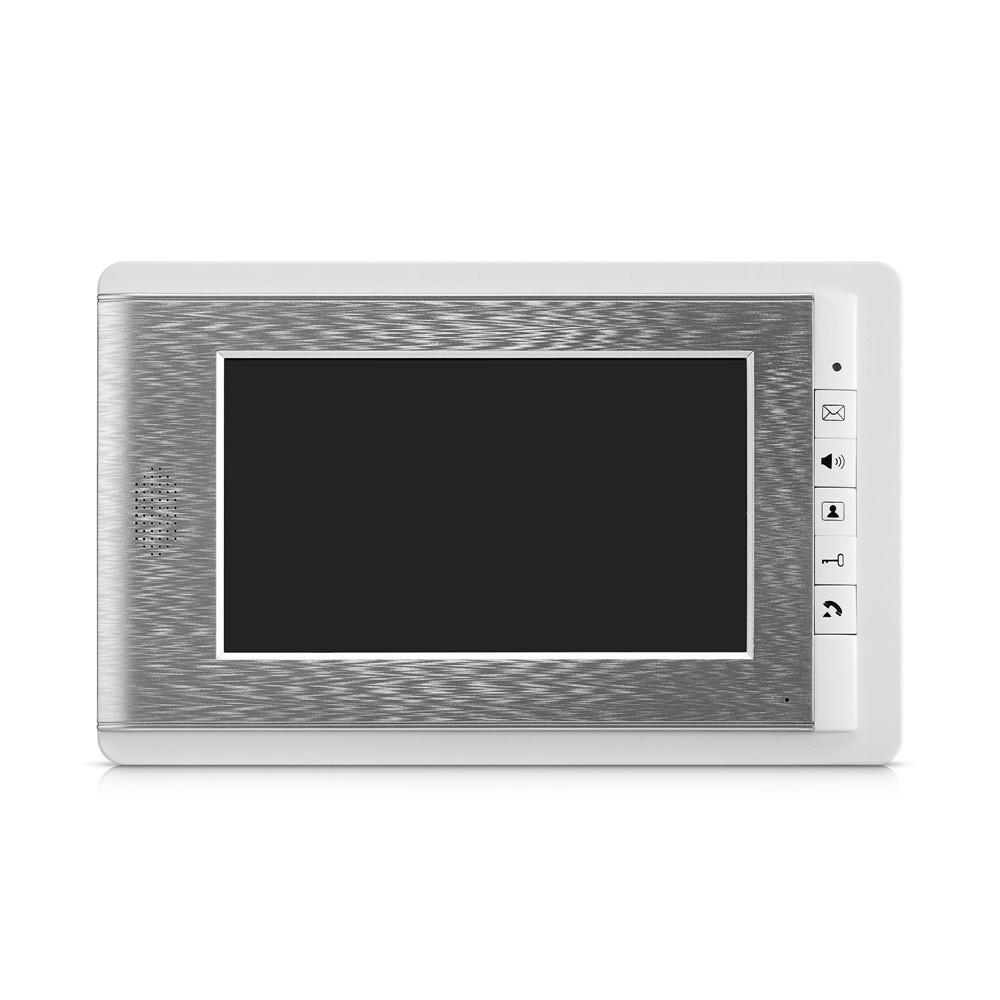

Indoor Monitor:

Display: 7 inch TFT LCD (16:9 display)
Resolution: 800 x 480
Charger: Adapter input voltage: AC100-240V 50Hz-60Hz
Adapter output voltage current: DC15V 1500mA

Material:ABS engineering plastics + acrylic panel
Installation:Surface mounting
Power cons umption : waiting-0.2W; Working-0.8
Ring the bell : 25-chord
Dimensions: 240X160X27mm (W x H x T)
Weight : 0.44 kg

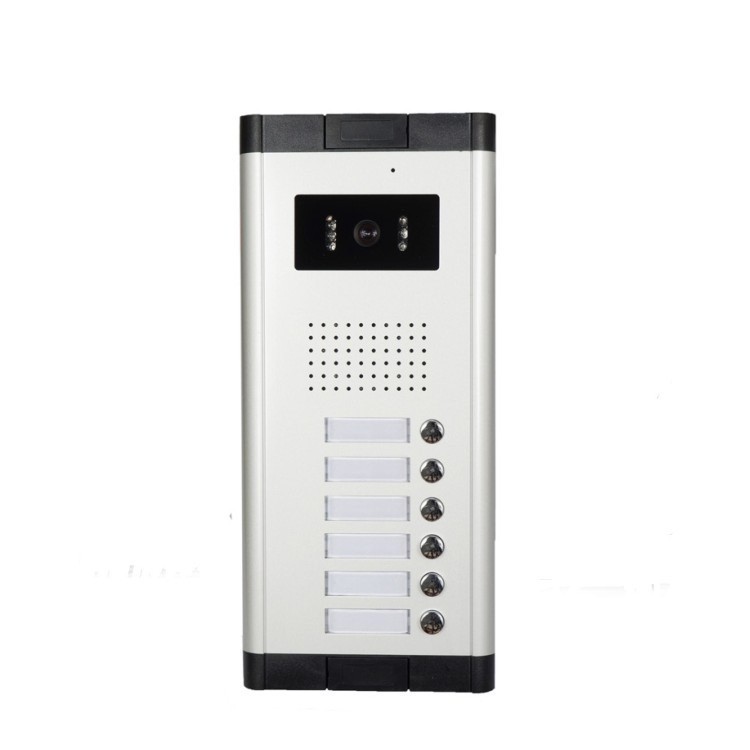

Outdoor station:
Camera: 700 Line CMOS
Illumination:0.1Lux
Lighting:4 Infrared LED
Night vision illumination distance; 1 meters
Power Adapter: DC 12V / 1A(Optional)
Viewing angle: 92°
Case: Aluminum alloy
Installation: Flush mounted
Work environment : -15℃-+60℃
Installation dimensions: 276x123x13(mm) (W x H x T )
Weight:0.8 kg

Product Type:	Video door phone for 5 apartments
Material:	Plastic+Acrylic
Monitor:	7 Inch TFT Intercom Touch Screen
Resolution:	1024(RGB)×600(V)
Standard:	PAL/NTSC
Calling Mode:	Two-way Intercom
Stanby Current:	Maximum 250MA
Work Current:	Maximum 600MA
Power Supply:	External power DC12V;Built in power AC100-240V
Work Temperature:	0~+50℃
Installation Way:	Surface Mounting
SD Card Max Capacity:	128GB Class 10TF (Micro SD ) Note: Must be use ≥Class10
Input Video Signal:	CVBS/AHD2.0
Motion detection:	Yes , For 2 Cameras , 1Call Panel work in the same time
System:	Support 2 indoor monitors + 2 call panels + 2 Cameras
Function:	Unlocking/Monitoring/Internal calling/Transfer calling /Recording
Advantage:	Support Photo Frame/MP3 &MP4 player/Clock & Voice message /backgroud Music/Independent unlock/digital zoom/motion detetion/Alarm detectors/sleep mode

4 Monitor Apartment Video Doorbell CMOS 1000TVL Camera Intercom Door Lock 0

4 Monitor Apartment Video Doorbell CMOS 1000TVL Camera Intercom Door Lock 1

Tag:

Place of Origin:	CHINA
Brand Name:	LENYO
Certification:	CE ROHS
Model Number:	LY-V70C-520-5

Minimum Order Quantity:	10pcs
Price:	30-50USD/pc
Packaging Details:	color box
Delivery Time:	5-10days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500pcs/day
