Detail Information

Camera:	CCD/CMOS	Power:	DC18V
Product Name:	Video Intercom System	Connection:	2-wire Cable
Type:	Wired Video Door Phone	Name:	Apartment Intercom
High Light:	2 Wire Apartment Video Doorbell , Apartment Video Doorbell Intercom , 800x480 Door Phone System

Product Description

2 Wire Apartment Video Doorbell Intercom System With 7 Inch Monitor Night Vision Door Entry System

The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity, central power supply. Use Plug -in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple operation makes the system more attractive, Flexible cable connection to wire, support in -out, branching and mixed mode.Dual intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call transfer via IP module to mobile phone.

Indoor monitor(Black/ White )
video door phonne color 7 inch
•Function: Intercom, Handfree,Monitor ,Unlock the door
•Display:7 inch TFT LCD
•Resolution:800 x 480
•Charger: Adapter input voltage: AC100-240V 50Hz-60Hz
•Adapter output voltage current: DC15V 1.2A
•Case: ABS Plastic material
•Installation: Surface mounting
•Size:159x132x13mm
•N.W:0.35kg
•Warrenty: 2-year

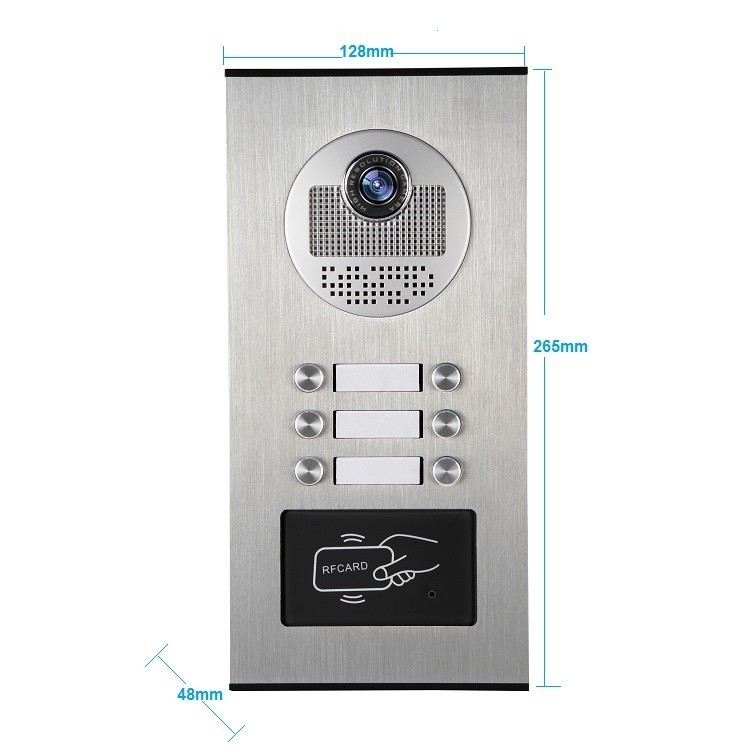

Outdoor station:
Function: press button calling the bell,intercom with monitor and nigh vision
•Camera: 700TVL CMOS Super backlight compensation

•Night vision distance: WLED 2m

•Case: 1/2/3/4 buttons for option

•Hole size: 180x 98 x 35mm (W x H x T )

•Installation:Surface monuted

•Weight:0.35kg

•Warrenty: 2-year

Product Type:	AHD 720P /960P/1080P/TVI/ CVI/AHD/CVBS video input
Material:	Plastic+Acrylic
Monitor:	7 Inch TFT Intercom Touch Screen
Resolution:	1024(RGB)×600(V)
Standard:	PAL/NTSC
Calling Mode:	Two-way Intercom
Stanby Current:	Maximum 250MA
Work Current:	Maximum 600MA
Power Supply:	External power DC12V;Built in power AC100-240V
Work Temperature:	0~+50℃
Installation Way:	Surface Mounting
SD Card Max Capacity:	128GB Class 10TF (Micro SD ) Note: Must be use ≥Class10
Input Video Signal:	CVBS/AHD2.0
Motion detection:	Yes , For 2 Cameras , 1Call Panel work in the same time
System:	Support 2 indoor monitors + 2 call panels + 2 Cameras
Function:	Unlocking/Monitoring/Internal calling/Transfer calling /Recording
Advantage:	Support Photo Frame/MP3 &MP4 player/Clock & Voice message /backgroud Music/Independent unlock/digital zoom/motion detetion/Alarm detectors/sleep mode

2 Wire Apartment Video Doorbell Intercom 800x480 Door Phone System 0

Tag:

Place of Origin:	CHINA
Brand Name:	LENYO
Certification:	CE ROHS
Model Number:	LY-D2E2

Minimum Order Quantity:	100
Price:	50USD/pc
Packaging Details:	color box
Delivery Time:	5-10days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500pcs/day
