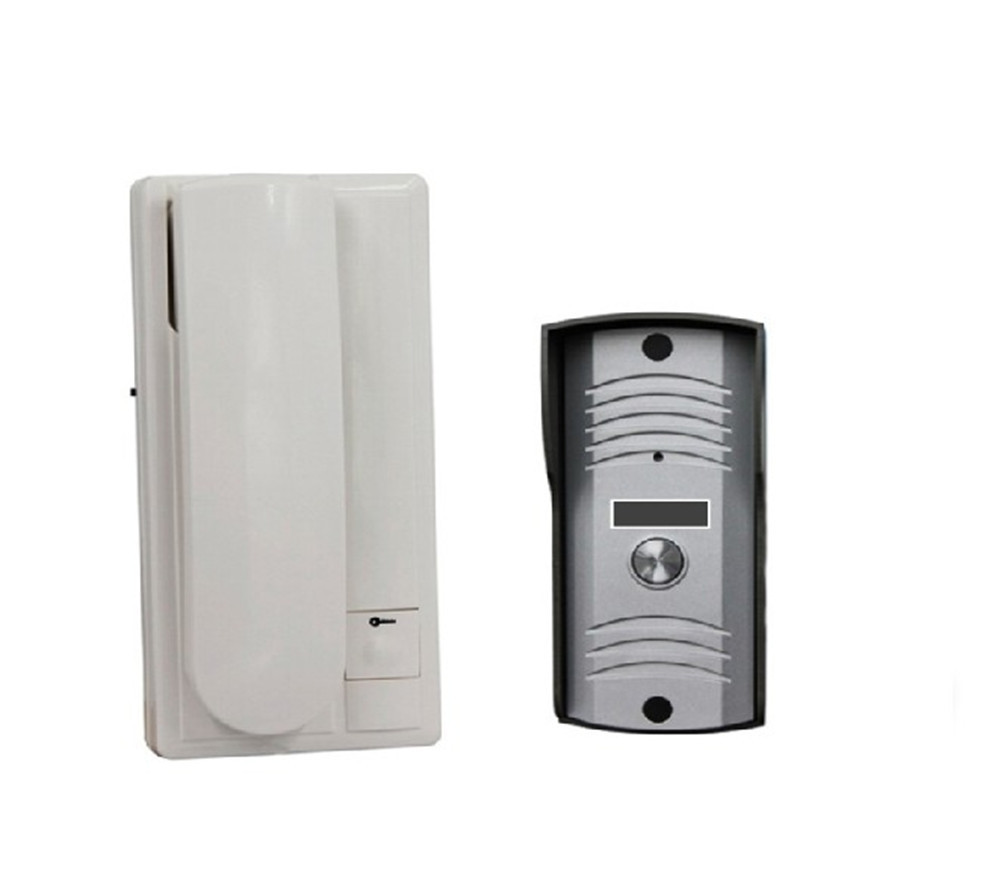

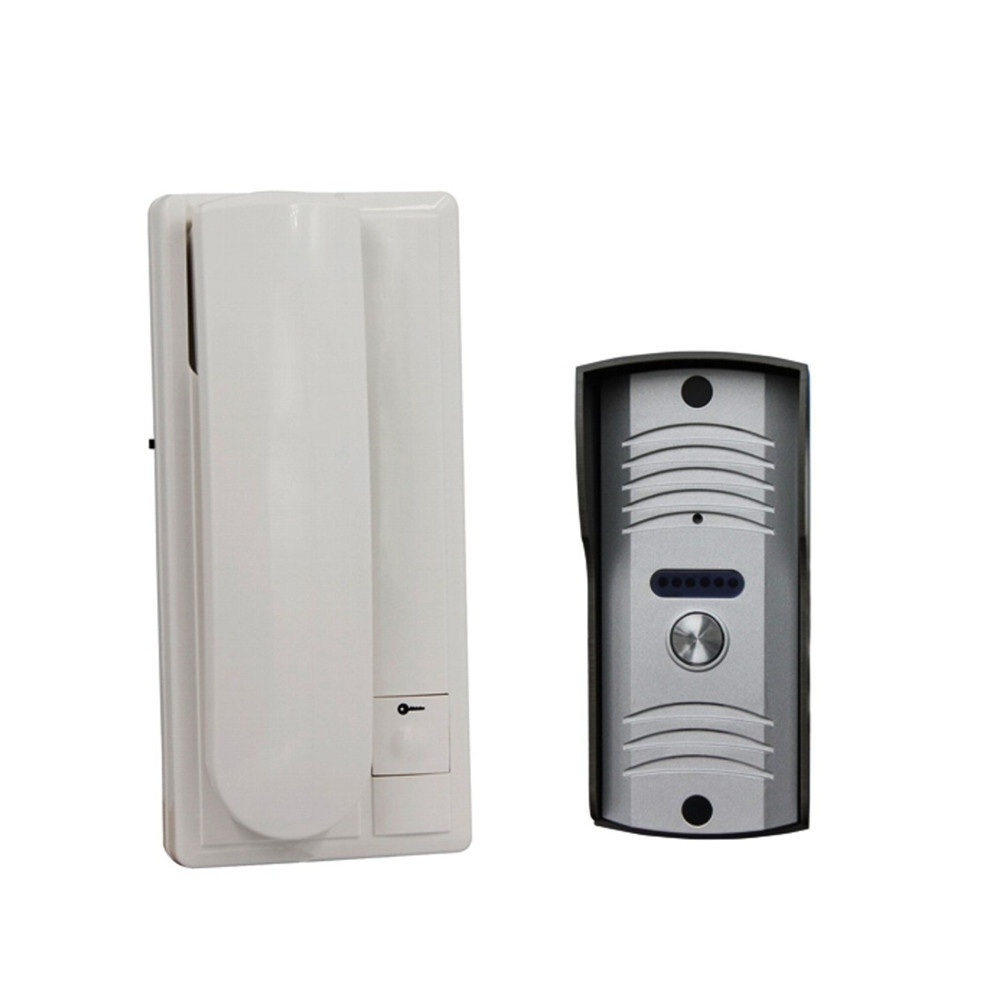

Non Visual One To One Intercom Doorbell EMC Approved Lock Function

Name: Non Visual One To One Intercom Doorbell EMC Approved Lock Function
Brand: LENYO
SKU: 3208C
Price: 9 USD
Availability: InStock
Rating: 4.8 (136 reviews)

Basic Information

Place of Origin:	CHINA
Brand Name:	LENYO
Certification:	CE FCC EMC LVD
Model Number:	3208C

Minimum Order Quantity:	100
Price:	9-11usd/pcs
Packaging Details:	color box
Delivery Time:	5-30days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/day

Get Best Price Contact Now

Detail Information

Place Of Origin:	China	Product Name:	Audio Doorphone
Connection:	2-wire Cable	Unlock:	Yes
Power:	AC100-240V/ DC 12V	Color:	White/Customized
High Light:	One To One Intercom Doorbell , EMC One To One Intercom , One To One Doorbell Intercom

Product Description

Non-visual One-to-one Intercom Doorphone Wired Two-way Audio Video Doorbell

Two way intercom, one way call and lock function

Two wire connection

With a new ABS plastic, durable

Excellent consumer side of the tone circuit, intercom voice clarity

Effective distance of 300 meters above intercom

Easy installation easy use
Specification
2wire auido doorphone intercom1. Audio distortion rate of 50mW

Talk time: unlimited, free calls

Input voltage: AC220V 50Hz, Output voltage: AC12V 1200mA

Frequency response: 300 ~ 3400HZ

Working voltage: DC12V

Power consumption: static <0.2W, call status <2W

The connecting line effectively intercom wiring requirements:

● 100 meters: RVV2(2 pin) x 0.5 square millimeters

● 150 meters: RVV2(2 pin) x 0.8 square millimeters

● 250 meters: RVV2(2 pin) x 1.0 square millimeters

● 300 meters: RVV2(2 pin) x 1.5 square millimeters


			Output sensitivity

			<60mV(Frequency 1000Hz)

			Frequency Response

			+/-3ddB(300Hz-3400Hz)

			Noise voltage

			<10mV

			Ring sound level

			>70dB(AT 0.5m)

			Quiescent current

			<5uA

			Intercom working current

			<100mA

			Input voltage

			Plug into 110VAC power or insert 4 cells of R6P size AA 1.5V (alkaline) into the cabinet of both the talkback pair.
